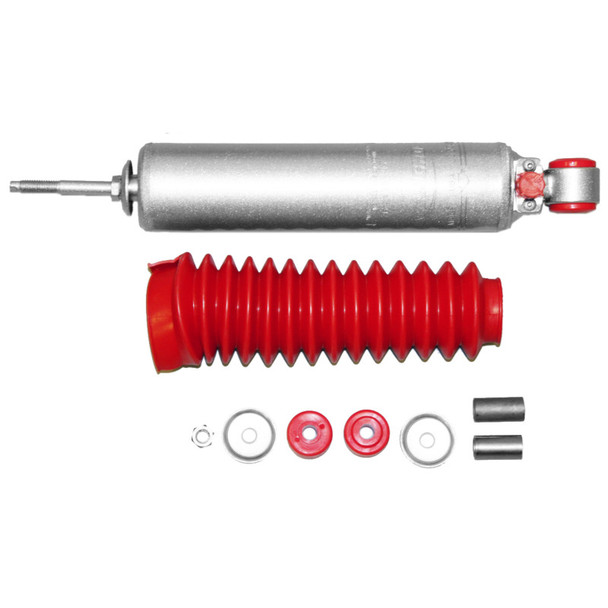

Rancho 66-77 Ford Bronco Front RS9000XL Shock RS999117

Part Number: rhoRS999117 Description: Rancho 66-77 Ford Bronco Front RS9000XL Shock Lower Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL Upper Mount Type: Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch Parts Pack(s): P01192,P00910 Hydraulic Lockout: No Compressed Length: 314.2 Extended Length: 474.2 Travel Length: 160 Dust Shield Included: Yes Includes Bump Stop: No Internal Rebound Bumper: No Internal Construction Type: Tri Tube Damping Adjustment Type: Manual Finish: Painted Grade Type: Performance Body Diameter: 2.38 Shock Stroke: 6.3 Shock Absorber Rod End Measuring Point: Center of Loop Shock Absorber Body End Measuring Point: Base of Stem Gas Charged: Yes Mounting Hardware Included: Yes Cylinder Outside Diameter: 2.38 Body Material: Steel Cylinder Material: Steel Body Color: Silver Cylinder Color: Silver Color: Silver Cylinder Finish: Painted Boot Included: Yes Dust Shield Diameter: 2.99 Dust Shield Material: Rubber Dust Shield Color: Red Rod Diameter: 0.709 Shaft Material: Nitrocarburized Shock Absorber Bore Size: 1.26 Internal Rebound Spring: No Type: Telescopic Adjustable Damping: Yes Active or Passive Suspension: Passive Adjustable Compression: Yes Adjustable Rebound: Yes Valving Type: Progressive Self-Leveling: No Adjustable Ride Height: No Maximum Ride Height Lowering Distance: 0 Maximum Ride Height Raising Distance: 0 Air Adjustable: No Air Ride Suspension: No Bladder(s) Included: No Bladder Sleeve(s) Included: No Bladder Heavy Duty Crimping Rings Included: No New Or Remanufactured: New Coil Over Springs Included: No Bearing Plate Included: No Spring Included: No Coil Spring Insulator(s) Included: No Spring Isolators Included: No Spring Seat Included: No Remote Reservoir: No Strut Mount Insulator(s) Included: No Lower Mount Code: L1 Upper Mount Code: S4
