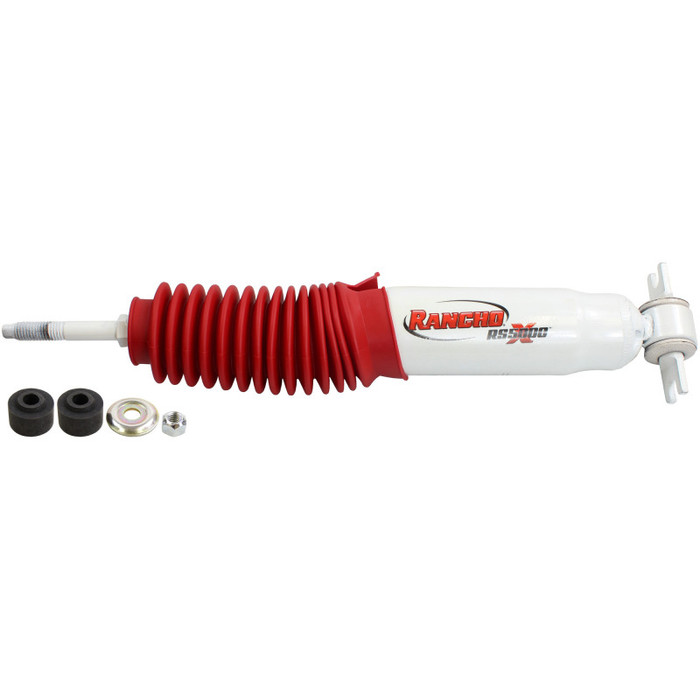

Rancho 02-08 Dodge Pickup / Ram 1500 1/2 Ton Front RS5000X Shock RS55281

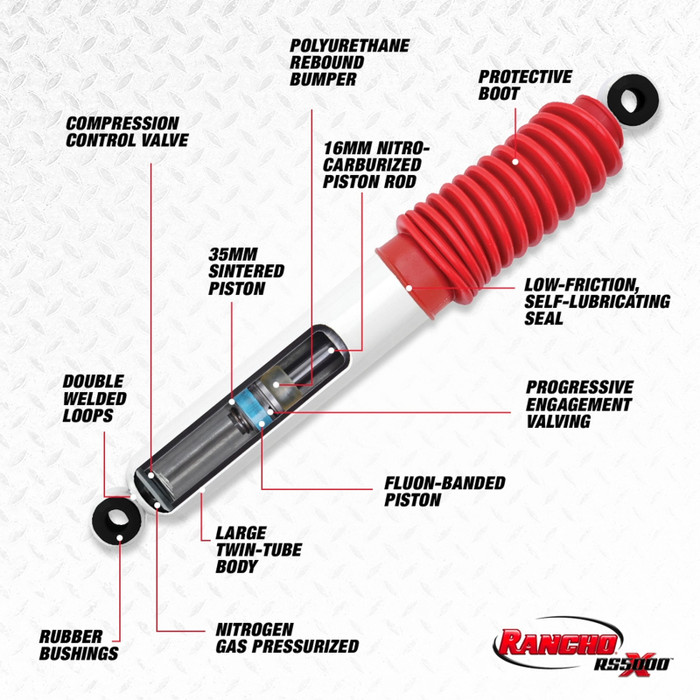

Part Number: rhoRS55281 Description: Rancho 02-08 Dodge Pickup / Ram 1500 1/2 Ton Front RS5000X Shock Lower Mount Type: Cross Pin Mount - Open Ended, 3/8" Hole ID (Both Ends) X 3.3/16" Pin Length (Hole Center to Center) Upper Mount Type: Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch Gas Charged: Yes Parts Pack(s): P01167 Hydraulic Lockout: No Compressed Length: 9.76 Extended Length: 14.2 Travel Length: 4.44 Dust Shield Included: Yes Includes Bump Stop: No Internal Rebound Bumper: Yes Finish: Painted Grade Type: Performance Shock Absorber Bore Size: 35 Mounting Hardware Included: Yes Body Diameter: 57.2 Cylinder Outside Diameter: 57.2 Body Material: Steel Cylinder Material: Steel Body Color: White Cylinder Color: White Color: White Cylinder Finish: Painted Boot Included: Yes Dust Shield Diameter: 2.99 Dust Shield Material: Rubber Dust Shield Color: Red Rod Diameter: 15.8 Shaft Material: Nitrocarburized Shock Absorber Bore Size: 1.3779527559055118 Internal Rebound Spring: No Internal Construction Type: Twin Tube Type: Telescopic Adjustable Damping: No Active or Passive Suspension: Passive Adjustable Compression: No Adjustable Rebound: No Valving Type: Progressive Self-Leveling: No Adjustable Ride Height: No Maximum Ride Height Lowering Distance: 0 Maximum Ride Height Raising Distance: 0 Air Adjustable: No Air Ride Suspension: No Bladder(s) Included: No Bladder Sleeve(s) Included: No Bladder Heavy Duty Crimping Rings Included: No New Or Remanufactured: New Coil Over Springs Included: No Bearing Plate Included: No Spring Included: No Coil Spring Insulator(s) Included: No Spring Isolators Included: No Spring Seat Included: No Remote Reservoir: No Strut Mount Insulator(s) Included: No Shock Stroke: 112.8 Shock Absorber Rod End Measuring Point: Center of Cross Pin Shock Absorber Body End Measuring Point: Base of Stem Lower Mount Code: XP12 Upper Mount Code: S5
