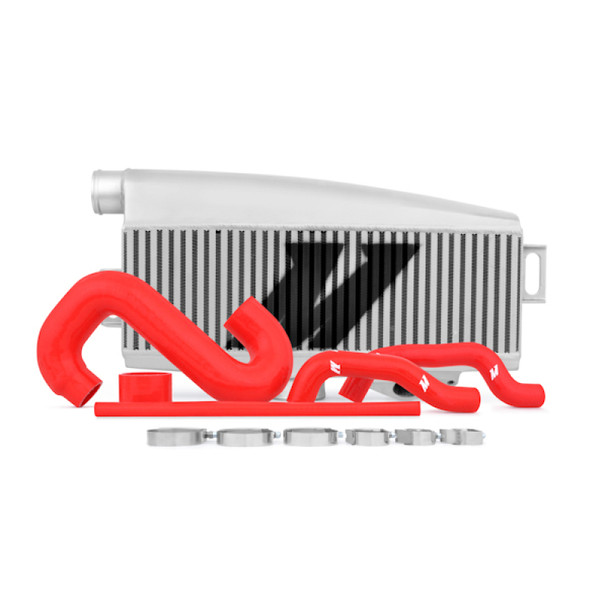

Mishimoto Subaru 02-07 WRX/04-07 STi Top-Mount Intercooler Kit - Powder Coated Silver & Red Hoses MMTMIC-WRX-01SLRD

Part Number: misMMTMIC-WRX-01SLRD Description: Subaru WRX/STI Performance Top-Mount Intercooler Kit Alternate Part Number: TMIWRX01SLRD Color: Silver Finish: Powder-Coat Material: Aluminum Installation Difficulty: 3/5 Color: Silver / Red TechSpec Applications: Saab 9-2X H4 (2.0L) 2005--Saab 9-2X H4 (2.5L) 2006--Subaru WRX H4 (2.0) 2002-2005--Subaru WRX H4 (2.5) 2006-2007--Subaru WRX STI H4 (2.5) 2004-2007 TechSpec Engine Codes: EJ20--EJ25 TechSpec Chassis Codes: GD6--GG6 TechSpec Maximum Recommended Boost Pressure (PSI): 22 TechSpec Maximum Recommended Horsepower: 305 TechSpec Overall Length (in): 22.25 TechSpec Overall Height (in): 11.25 TechSpec Overall Width (in): 3.625 TechSpec Core Type: Bar-and-Plate TechSpec Core Thickness (in): 3.5 TechSpec Core Length (in): 19 TechSpec Core Height (in): 6 TechSpec Inlet (in): 2.5 TechSpec Outlet (in): 2.75 TechSpec Weight (lbs): 17.25 TechSpec Note: This kit is rated for approximately 350 whp, or 25PSI of turbo boost. Exceeding these horsepower or pressure limits may require a larger front-mount intercooler. This intercooler kit will not fit RHD vehicles. TechSpec Includes: (1) Bar-and-Plate Intercooler--(5) Silicone Hoses and Couplers--(1) High-Temp Silicone hose--(2) 3-in T-bolt Clamps--(1) 2.75-in T-bolt Clamp--(1) 2.25-in T-bolt Clamp--(1) Bypass Valve Gasket--(1) Black Nylon Hose Fitting, 3/4-in I.D.--(1) Black Nylon Tee Hose Fitting, 3/4-in I.D.--(1) WRX specific BPV hose--(1) STI specific BPV hose--(1) Intercooler to throttle body coupler--(1) PCV hose TechSpec Installation Notes: N/A TechSpec Pipe Shape: N/A TechSpec Pipe Diameter: N/A TechSpec Pipe Length: N/A TechSpec Centerline Radius: N/A SellingPoint10: N/A SellingPoint11: N/A SellingPoint12: N/A SellingPoint13: N/A SellingPoint14: N/A SellingPoint15: N/A SellingPoint02: High efficiency bar-and-plate core provides increased volume, optimal heat transfer, and significantly reduces AITs SellingPoint03: Durable and precision engineered cast aluminum end tanks provide smooth flow SellingPoint04: Includes silicone bypass hose, silicone crankcase ventilation hose, bypass valve gasket, T-bolt clamps, and all hardware for installation SellingPoint05: Unique single inlet design provides superior airflow and proper dispersion of air through the core SellingPoint06: Gained 14 hp and dropped intake temperatures 30 F when installed in 305 hp vehicle with 20-22 psi of boost SellingPoint07: Will support vehicles with up to 350 hp SellingPoint08: Available in Sleek Silver or Stealth Black finish SellingPoint09: Mishimoto Lifetime Warranty SellingPoint01: Direct fit for the 2002-2007 Subaru WRX/STI CARB EO Number: D-759 Install Difficulty: 3 OptionLabel: Silver Intercooler, Red Hoses
