Mishimoto 2017+ Honda Civic Type R Intercooler Kit - Black Intercooler Red Pipes MMINT-CTR-17KBKWRD

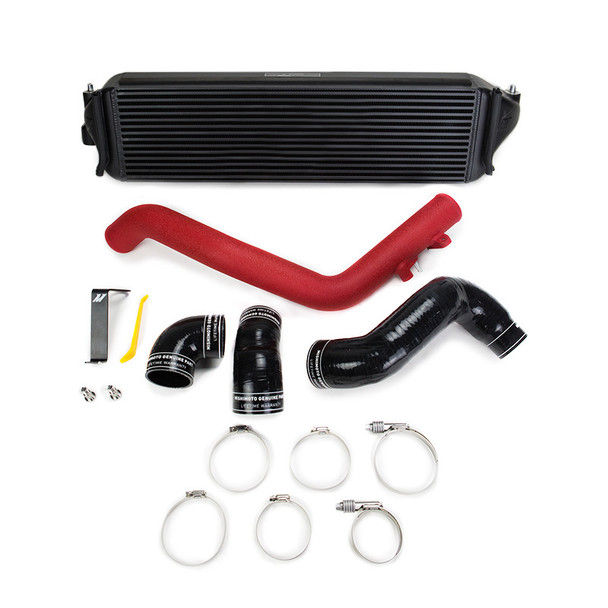

Part Number: misMMINT-CTR-17KBKWRD Description: Mishimoto 2017+ Honda Civic Type R Intercooler Kit - Black Intercooler Red Pipes TechSpec Applications: 2017-2021 Honda Civic Type R TechSpec Engine Codes: K20C1 TechSpec Chassis Codes: FK8 TechSpec Maximum Recommended Boost Pressure (PSI): N/A TechSpec Maximum Recommended Horsepower: N/A TechSpec Overall Length (in): N/A TechSpec Overall Height (in): N/A TechSpec Overall Width (in): N/A TechSpec Core Type: Bar-and-Plate TechSpec Core Thickness (in): N/A TechSpec Core Length (in): N/A TechSpec Core Height (in): N/A TechSpec Inlet (in): 2.5 TechSpec Outlet (in): 2.5 TechSpec Weight (lbs): 29 TechSpec Note: N/A TechSpec Includes: (1) Intercooler--(1) Mandrel-Bent Aluminum Cold-Side Pipe--(1) Silicone Hot-Side Pipe--(2) Silicone Couplers--(6) High-Torque Worm Gear Clamps--(1) CARB EO Sticker--Mounting Hardware--Mishimoto Lifetime Warranty TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM). TechSpec Pipe Shape: N/A TechSpec Pipe Diameter: N/A TechSpec Pipe Length: N/A TechSpec Centerline Radius: N/A SellingPoint10: N/A SellingPoint11: N/A SellingPoint12: N/A SellingPoint13: N/A SellingPoint14: N/A SellingPoint15: N/A SellingPoint01: Direct fit for the 2017-2021 Honda Civic Type R SellingPoint02: 4.7-in thick intercooler design optimized for maximum flow SellingPoint03: Max power gains of up to 10 whp and 10 wtq SellingPoint04: Drops outlet air temperatures by 50F on stock tuning SellingPoint05: Optimal core design for maximum cooling efficiency with minimal pressure drop SellingPoint06: Intercooler volume increased by 169-percent and external fin surface area by 189-percent SellingPoint07: 2.5-in piping diameter improves flow characteristics SellingPoint08: Mandrel-bent aluminum cold-side piping for increased durability SellingPoint09: Available in silver or black intercooler with the option of wrinkle black or wrinkle Rallye Red piping CARB EO Number: D-759-12 Install Difficulty: 3 OptionLabel: Black Intercooler, Red Pipes
