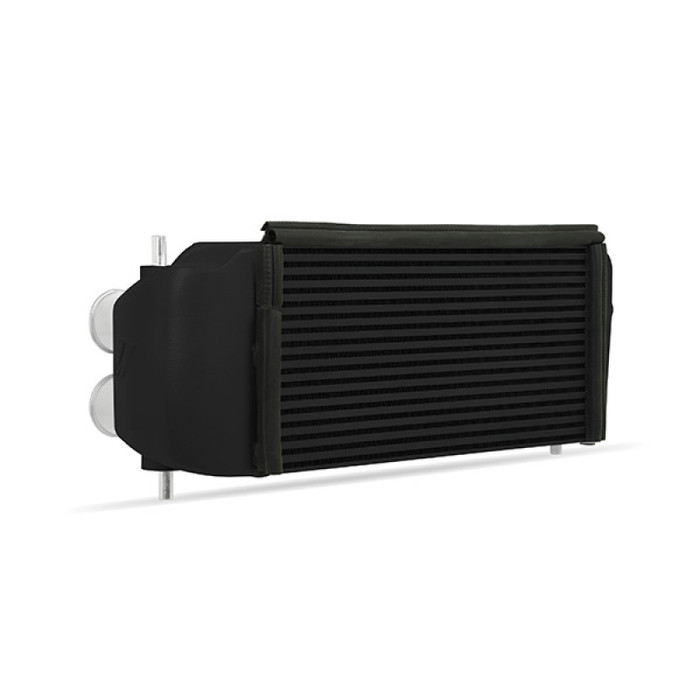

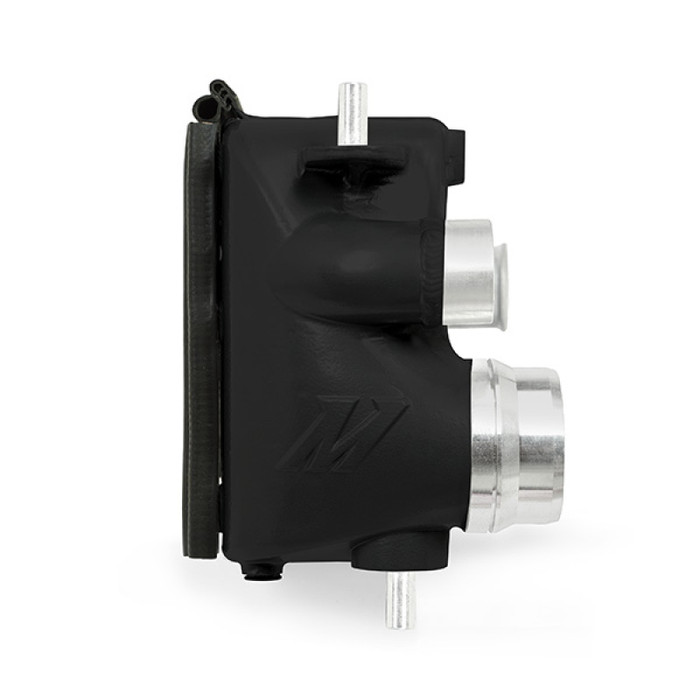

Mishimoto 2016+ Ford F-150 2.7/3.5L Ecoboost Intercooler (I/C ONLY) - Black MMINT-F150-15BK

Part Number: misMMINT-F150-15BK Description: Mishimoto 2016+ Ford F-150 2.7/3.5L Ecoboost Intercooler (I/C ONLY) - Black TechSpec Overall Width (in): 7 TechSpec Core Type: Bar-and-Plate TechSpec Core Thickness (in): 4.72 TechSpec Core Length (in): 19.6 TechSpec Core Height (in): 9.4 TechSpec Inlet (in): 2.5 TechSpec Outlet (in): 3 TechSpec Weight (lbs): N/A TechSpec Note: N/A TechSpec Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim--(1) Bypass Valve Bracket--Mounting Hardware--Bypass Valve Hardware--Mishimoto Lifetime Warranty TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM). TechSpec Pipe Shape: N/A TechSpec Pipe Diameter: N/A TechSpec Pipe Length: N/A TechSpec Centerline Radius: N/A SellingPoint10: Available in Sleek Silver or Stealth Black SellingPoint11: Mishimoto Lifetime Warranty SellingPoint12: N/A SellingPoint13: N/A SellingPoint14: N/A SellingPoint15: N/A TechSpec Applications: 2015+ Ford F-150 EcoBoost--2017+ Ford Raptor 3.5L V6 EcoBoost--2018+ Ford Expedition 3.5L V6 EcoBoost--2018+ Lincoln Navigator 3.5L V6 EcoBoost TechSpec Engine Codes: 2.7L V6 EcoBoost--3.5L V6 EcoBoost TechSpec Chassis Codes: N/A TechSpec Maximum Recommended Boost Pressure (PSI): 50 TechSpec Maximum Recommended Horsepower: N/A TechSpec Overall Length (in): 29 TechSpec Overall Height (in): 9.5 SellingPoint01: Direct fit for the 2015+ Ford F-150 EcoBoost SellingPoint02: 10F (5.5C) reduction in intake air temp SellingPoint03: 77-percent increase in internal core volume SellingPoint04: 163-percent increase in external fin surface area SellingPoint05: CNC-machined inlets and outlets are ridged for greater holding power SellingPoint06: All-aluminum, TIG-welded construction SellingPoint07: Internal fin design for maximum heat transfer with minimal pressure drop SellingPoint08: Fits with stock and Mishimoto 2.7L and 3.5L intercooler pipe kits SellingPoint09: Fits with stock intercooler fans without modification CARB EO Number: D-759-6 Install Difficulty: 3 OptionLabel: Stealth Black
