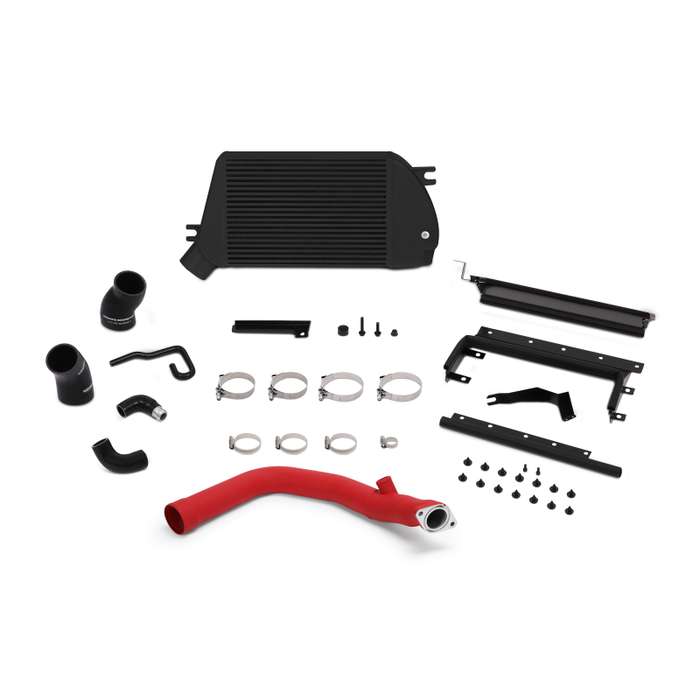

Mishimoto 2015 Subaru WRX Top-Mount Intercooler Kit - Powder Coated Black & Wrinkle Red Pipes MMTMIC-WRX-15RBK

Part Number: misMMTMIC-WRX-15RBK Description: Subaru WRX Performance Top-Mount Intercooler and Charge Pipe System Color: Wrinkle Red Finish: Winkle Installation Difficulty: 3/5 Material: Aluminum Alternate Part Number: TMICWRX15RBK Color: Black SellingPoint10: Comes with all necessary hardware, clamps, and brackets for an easy installation SellingPoint11: Pre-marked area for NPT sensor SellingPoint12: Cooler available in durable powder-coated Sleek Silver or Stealth Black finish SellingPoint13: Mishimoto Lifetime Warranty SellingPoint14: N/A SellingPoint15: N/A TechSpec Applications: 2015-2021 WRX--2014-2018 Forester XT TechSpec Engine Codes: FA20DIT TechSpec Chassis Codes: VA TechSpec Maximum Recommended Boost Pressure (PSI): 35 TechSpec Maximum Recommended Horsepower: 450 TechSpec Overall Length (in): 24 TechSpec Overall Height (in): 10 TechSpec Overall Width (in): 5 TechSpec Core Type: Bar-and-Plate TechSpec Core Thickness (in): 4 TechSpec Core Length (in): N/A TechSpec Core Height (in): N/A TechSpec Inlet (in): 2.5 TechSpec Outlet (in): 3 TechSpec Weight (lbs): 24.5 TechSpec Note: This kit is rated for 300-450 whp with maximum limits of approximately 500 whp, or 35 PSI of turbo boost. Exceeding that horsepower or pressure limit may require a larger front-mount intercooler.----Tuning is not necessary after installing our top-mount intercooler and charge-pipe, but you will see optimal performance if tuning is performed after the intercooler is installed.----The top-mount intercooler will not fit with the stock engine cover due to its larger size. TechSpec Includes: (1) Bar-and-Plate Intercooler--(1) Optional Charge-Pipe--(1) Intercooler Mounting Bracket--(1) Air Diverter with Attached Rubber Gaskets--(1) Charge-Pipe to Intercooler Hose--(1) Intercooler to Throttle Body Hose--(3) Bypass Valve Hoses--(2) 3-in T-bolt Clamp--(2) 3.5-in T-bolt Clamp--(4) Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM). TechSpec Pipe Shape: N/A TechSpec Pipe Diameter: N/A TechSpec Pipe Length: N/A TechSpec Centerline Radius: N/A SellingPoint01: Direct fit for the 2015-2021 Subaru WRX SellingPoint02: Provides 35 F temperature drop compared to stock intercooler on a stage 2 tune SellingPoint03: Proven 15 whp and 8 wtq bolt-on power increase on a stage 2 tune SellingPoint04: 100-percent aluminum construction with durable cast end tanks TIG-welded to a highly efficient bar-and-plate core SellingPoint05: TIG-welded to a highly efficient bar-and-plate core SellingPoint06: Intercooler core designed for maximum cooling efficiency and minimal pressure drop SellingPoint07: Includes larger air duct designed to provide optimal airflow to the Mishimoto intercooler core SellingPoint08: Includes the Mishimoto intercooler charge-pipe for maximum airflow and power capability SellingPoint09: Includes new BPV hoses, hot side coupler, and silicone throttle body hose CARB EO Number: D-759 Install Difficulty: 3 OptionLabel: Black Intercooler, Red Pipe
