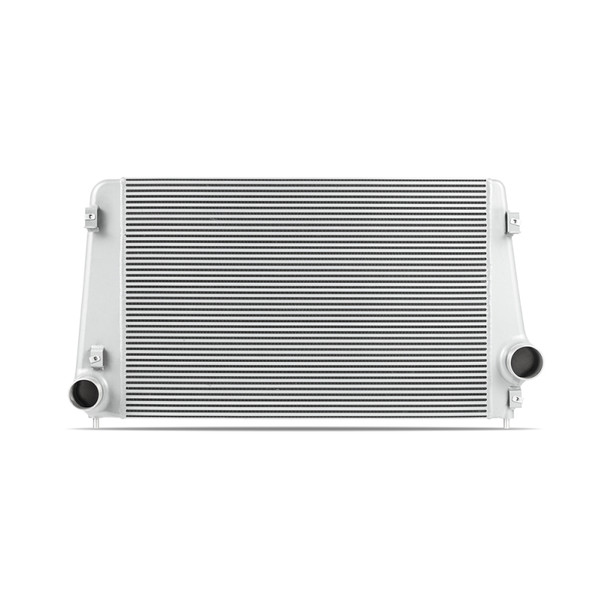

Mishimoto 17-19 GM L5P Duramax Intercooler Kit - Silver w/ WBK Pipes MMINT-DMAX-17KSLBK

Part Number: misMMINT-DMAX-17KSLBK Description: Mishimoto 17-19 GM L5P Duramax Intercooler Kit - Silver w/ WBK Pipes TechSpec Applications: GMC Sierra 2500HD V8 (6.6L Diesel) 2017-2019--GMC Sierra 3500HD V8 (6.6L Diesel) 2017-2019--Chevrolet Silverado 2500HD V8 (6.6L Diesel) 2017-2019--Chevrolet Silverado 3500HD V8 (6.6L Diesel) 2017-2019 TechSpec Engine Codes: L5P TechSpec Chassis Codes: GMT K2 TechSpec Maximum Recommended Boost Pressure (PSI): N/A TechSpec Maximum Recommended Horsepower: N/A TechSpec Overall Length (in): 45.8 TechSpec Overall Height (in): 23.85 TechSpec Overall Width (in): 4.92 TechSpec Core Type: Bar-and-Plate TechSpec Core Thickness (in): 2.67 TechSpec Core Length (in): 20 TechSpec Core Height (in): 11 TechSpec Inlet (in): 3 TechSpec Note: Some trimming of the fan shroud may be required for installation. TechSpec Includes: (1) Mishimoto Intercooler--(1) Cold-Side Intercooler Pipe Adapter--(2) Cold-Side Intercooler Pipe--(2) Hot-Side Intercooler Pipe--(3) Cold-Side Intercooler Boot--(3) Hot-Side Intercooler Boot--(13) Constant-Tension T-Bolt Clamp--(2) Intercooler Core Spacer--(2) M8 X 1.25 X 20mm Bolt--(2) M8 X 1.25 X 35mm Bolt--(2) M8 X 1.25 X 60mm Bolt--(6) M8 Washer--Mishimoto Lifetime Warranty TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM). TechSpec Pipe Shape: N/A TechSpec Pipe Diameter: N/A TechSpec Pipe Length: N/A TechSpec Centerline Radius: N/A SellingPoint10: Retains temp sensor harness mount for safe and secure wire routing SellingPoint11: CNC-machined quick-disconnect with new O-ring and spring clip ensures precise, leak-free fit SellingPoint12: Includes Mishimoto silicone boots with DuraCore technology and Mishimoto constant-tension T-bolt clamps SellingPoint13: Available in durable silver or black powder-coated finish SellingPoint14: Patent Pending SellingPoint15: Mishimoto Lifetime Warranty TechSpec Outlet (in): 3.25 TechSpec Weight (lbs): 80 SellingPoint01: Direct fit for 2017-2019 Chevrolet/GMC 6.6L Duramax L5P SellingPoint02: Includes performance intercooler, hot and cold-side intercooler pipes, and DuraCore boots SellingPoint03: Reduces restriction by up to 64-percent over stock intercooler system SellingPoint04: 68mm-thick bar-and-plate core is 70-percent thicker than stock for maximum cooling SellingPoint05: 3.0-in mandrel-bent aluminum pipes eliminate restrictive bends and resonators SellingPoint06: Larger intercooler inlet and outlet reduce restriction for improved flow SellingPoint07: Pipes include 3 additional bungs that can be drilled and tapped for sensors or water/meth injection SellingPoint08: Robust cast-aluminum end tanks resist cracking under high heat and pressure SellingPoint09: Eliminates failure-prone stock throttle valve connector Install Difficulty: 5 OptionLabel: Silver Intercooler, Wrinkle Black Pipes
