Mishimoto 15-16 Ford F-150 EcoBoost 3.5L Black Performance Intercooler Kit w/ Polished Pipes MMINT-F35T-15KPBK

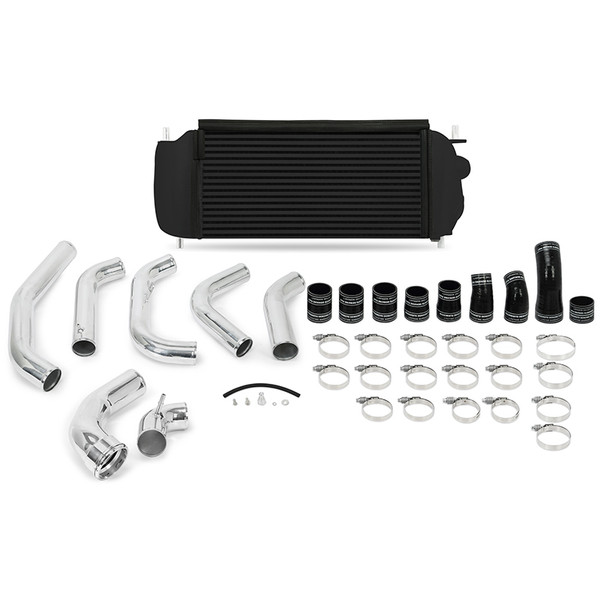

Part Number: misMMINT-F35T-15KPBK Description: Mishimoto 15-16 Ford F-150 EcoBoost 3.5L Black Performance Intercooler Kit w/ Polished Pipes TechSpec Applications: 2015-2016 Ford F-150 3.5L V6 EcoBoost TechSpec Engine Codes: 3.5L V6 EcoBoost TechSpec Chassis Codes: P552 TechSpec Maximum Recommended Boost Pressure (PSI): 50 TechSpec Maximum Recommended Horsepower: N/A TechSpec Overall Length (in): 29 TechSpec Overall Height (in): 9.5 TechSpec Overall Width (in): 7 TechSpec Core Type: Bar-and-Plate TechSpec Core Thickness (in): 4.7 TechSpec Core Length (in): 19.6 TechSpec Core Height (in): 9.4 TechSpec Inlet (in): 2.5 TechSpec Outlet (in): 3 TechSpec Weight (lbs): N/A TechSpec Note: N/A TechSpec Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim--(1) Bypass Valve Bracket--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing--(5) Aluminum Hot-Side Intercooler Pipes--(9) Silicone Boots w/ DuraCore Technology--(18) Constant-Tension Worm Gear Clamps--Mounting Hardware--Bypass Valve Hardware--Mishimoto Lifetime Warranty TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM). TechSpec Pipe Shape: N/A TechSpec Pipe Diameter: N/A TechSpec Pipe Length: N/A TechSpec Centerline Radius: N/A SellingPoint10: All-aluminum, TIG-welded construction SellingPoint11: Fits with stock intercooler fans without modification SellingPoint12: Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish SellingPoint13: Mishimoto Lifetime Warranty SellingPoint14: N/A SellingPoint15: N/A SellingPoint01: Direct fit for 2015-2016 Ford F-150 3.5L EcoBoost SellingPoint02: 24-percent total internal volume increase over the stock intercooler pipes SellingPoint03: Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation SellingPoint04: Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors SellingPoint05: Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil SellingPoint06: Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract SellingPoint07: 10F (5.5C) reduction in intake air temp SellingPoint08: 77-percent increase in internal Intercooler core volume SellingPoint09: 163-percent increase in external fin surface area CARB EO Number: D-759-6 Install Difficulty: 4 OptionLabel: Black Intercooler, Polished Pipes
