McLeod Racing

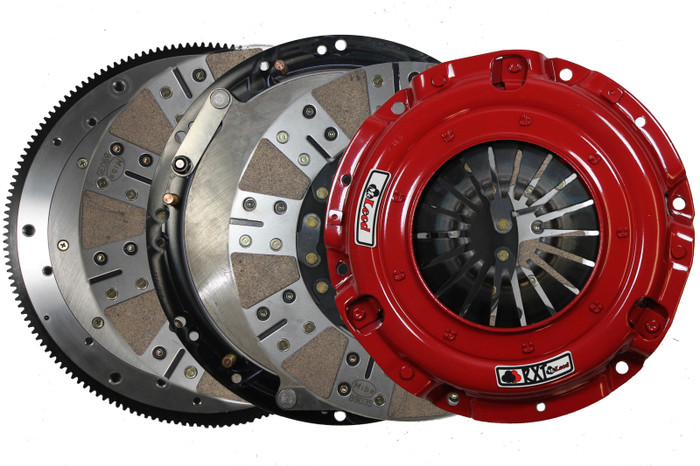

McLeod RXT Twin Disc Clutch Kit w/Steel Flywheel - Mod Motor Fords w/8 Bolt Crank 1-1/8in x 26 Input 6435807M
- SKU:
- mlr6435807M
- UPC:
- 887753316493
- MPN:
- 6435807M
- Condition:
- New
Frequently bought together:
Description
Part Number: mlr6435807M
Description: RXT (Power Pack) 1996-2017 Mustang with Steel Flywheel, 1-1/8 x 26 Spl
Make: Ford
Application: 1996-2017 4.6,5.4L Ford Modular with 8 Bolt Crank. 1-1/8 x 26 Spline.
Flywheel Included: Yes
Flywheel Material: Aluminum
Ring Gear Count: 164
Pressure Plate Style: Diaphragm
Disc Material: Ceramic
Disc Size: 9.687"
Inputshaft Spline: 1-1/8 x 26
Disc Configuration: Twin

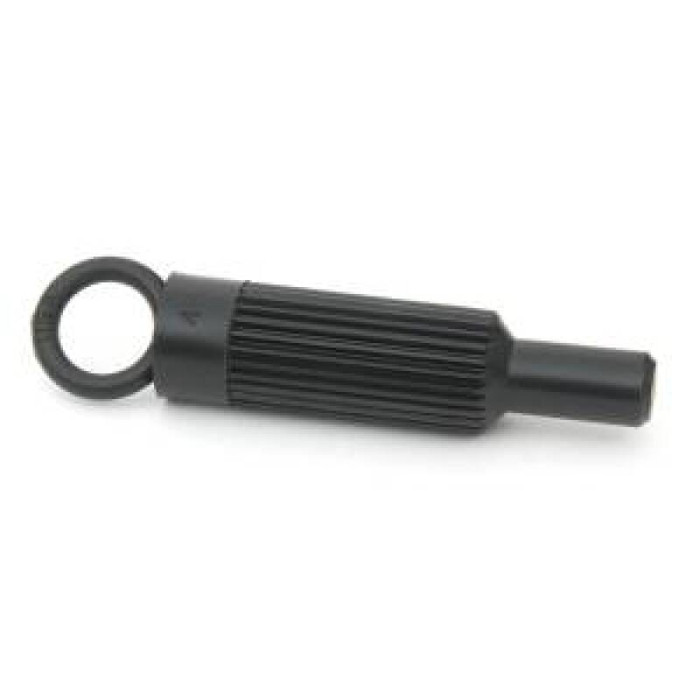

Alignment Tool Included: Yes
T.O. Bearing Included: No
Pilot Bearing/Bushing Included: No
Horsepower Rating: 1000 Hp/Tq at the crank.
NOTE:: Will fit all 1996-2010 Ford Mustang Base Model and GT with the use of a aftermarket 8 bolt crank. Further questions please call McLeod Tech Line at 714-630-2764.
NOTE 2:: CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft “boss†can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Disc Size: 9.687In.
NOTE 2:: CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft “boss” can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Horsepower Rating: 1000
Flywheel Material: Billet steel
Input Shaft Diameter: 1.125
Input Spline Quantity: 26
Disc Style: Segmented
Hub Style: Solid
Hardware Included: Yes
Throwout Bearing Included: No
Pilot Bushing Included: No
Clutch Usage: Performance
Ring Gear Tooth Quantity: 164-tooth
Crankshaft to Flywheel Bolt Quantity: 8-bolt
Engine Balance: Internal
Quantity: Sold as a kit.
Note: Aftermarket Transmission
Clutch Disc Quantity: 2
Disc Diameter (in.): 9.687
