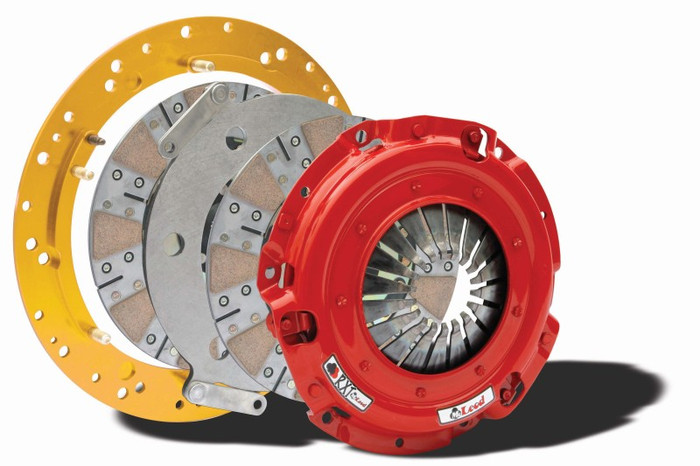

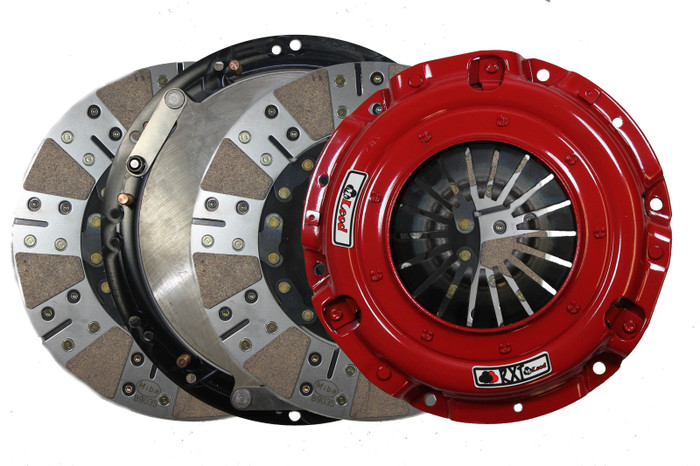

McLeod RXT Clutch Mustang Coyote 1in X 23 Metric Spline 2011 Cars 6932-25

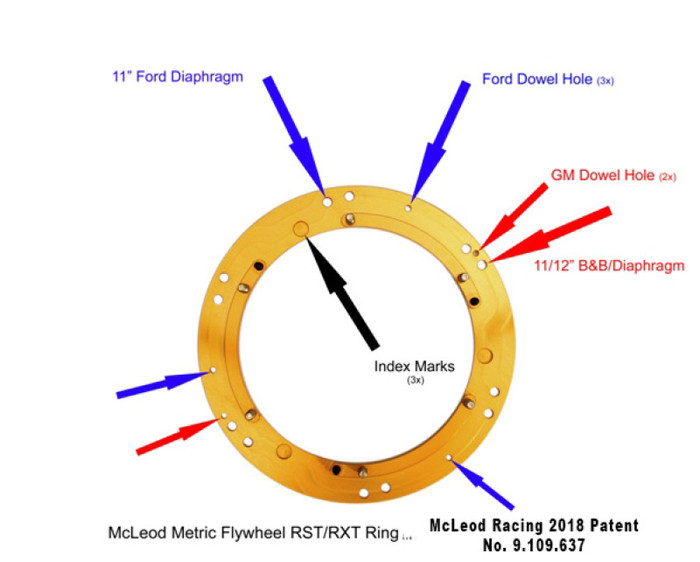

Part Number: mlr6932-25 Description: RXT CLUTCH, MUSTANG 1" X 23 METRIC SPLINE Alignment Tool Included: Yes Clutch Patterns: 12" LS1 Diaphragm Metric Bolts with Dowel Pin Clutch Usage: Street/Track Disc Diameter: 9-11/16" Disc Material: Ceramic Disc Style: Solid Hub Engine: 1996-2014 4.6L/5.0L/5.4L 8 Bolt Crank Flywheel Included: No Hardware Included: Yes Horsepower Rating: 1000 Hub Style: Solid Make: Ford Number of Discs: Double Pilot Bushing Included: No Pilot Bushing Material: N/A Pressure Plate Style: Diaphragm Spline: 1" x 23 Stock Disc Size: 11" Throwout Bearing Included: No Throwout Bearing Style: Standard Clutch Patterns: 11" Mustang with Dowel Pin Holes 2000 and up Engine: 1996-2016 4.6L/5.0L/5.4L 8 Bolt Crank Disc Style: Full Face/Multi Pad Stock Disc Size: 11In. Spline: 1In. x 23 Metric Clutch Patterns: 11In. Mustang with Dowel Pin Holes 2000 and up Engine: 2011-2017 5.0L Coyote Disc Diameter: 9-11/16In. NOTE:: This clutch will not bolt up to the OEM flywheel with factory 9 bolt pressure plate pattern. Please call McLeod Tech for recommendation (714) 630-2764. NOTE 2:: This clutch will not fit on flywheels with crank relief larger than 6.250In. in diameter. Please call McLeod Tech for recommendation (714) 630-2764 Clutch Patterns: 11" GM LS-X With Dowel Pin; 11" Ford Modular with Dowel Pins Disc Style: Segmented Clutch Usage: Performance Clutch Disc Quantity: 2 Disc Diameter (in.): 9.687 Input Shaft Diameter: 1.000 Input Spline Quantity: 23M Flywheel Fitment: For use with Ford Modular/GM LS-X Quantity: Sold as a kit. Note: Crank relief must be 6.250" or smaller for correct disc to flywheel contact. Will NOT fit Ford w/9 Bolt Pattern.
