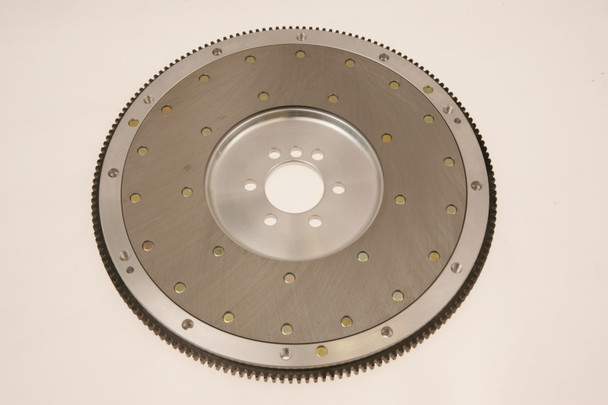

McLeod Flywheel Aluminum Ford 4.6/5.0/5.4L Cobra 8 Blt Crk - 96-15 Gt Muti Drill 164 563408

Part Number: mlr563408 Description: FLY ALM FORD 4.6/5.0L/5.4L COBRA 8 BLT CRK - 1996-2016 Mustang 164T Clutch Patterns: 11" Mustang with Dowel Pin Holes 2000 and up Flywheel Material: Aluminum Ring Gear: 164 tooth Engine: 1996-2016 4.6L/5.0L/5.4L 8 Bolt Crank Pressure Plate Pattern 1:: 1986-1999 10.5" Mustang Diaphragm with 8mm Bolts and Dowel Pins. Pressure Plate Pattern 2:: 1999-Up 11" Mustang Diaphragm with 10mm Bolts and Dowel Pins. Pressure Plate Pattern 3:: 10,10.5" Long & 10" Diaphragm with 5/16" bolts Pressure Plate Pattern 4:: 11" Long-Diaphragm with 5/16" bolts NOTE:: CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft “boss” can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care. Engine: 1996-2017 4.6L/5.0L/5.4L 8 Bolt Crank NOTE:: CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft “boss” can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care. Make: Ford Weight: 15 Lbs Clutch Patterns: 10.5In. Mustang Diaphragm 1986-2000 with Dowel Pin Holes Clutch Pattern 2: 2001.5-2010 11In. Diaphragm with Dowl Pin Hole Disc Diameter: 10.5In./11In. NOTE 2:: This Flywheel will not bolt up to the OEM 2012-Up Pressure Plate with factory 9 bolt pressure plate pattern and 8 mm Dowel Pins. Please call McLeod Tech for recommendation (714) 630-2764. Weight: 15.000 lbs. Engine: 1996-2017 4.6L/5.0L/5.4L, 2011-2017 3.7L 8 bolt crank Material: Billet aluminum Ring Gear Tooth Quantity: 164-tooth Crankshaft to Flywheel Bolt Quantity: 8-bolt Disc Diameter (in.): 10.500/11.000 in. Engine Balance: Internal Marine Use: No Replaceable Friction Surface: Yes SFI 1.1 Approved: Yes Pressure Plate Style: Diaphragm Quantity: Sold individually. Note: This flywheel does NOT contain 2012-Up GT/Boss 302 9 bolt pressure plate pattern. Note 2: CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft “boss” can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
