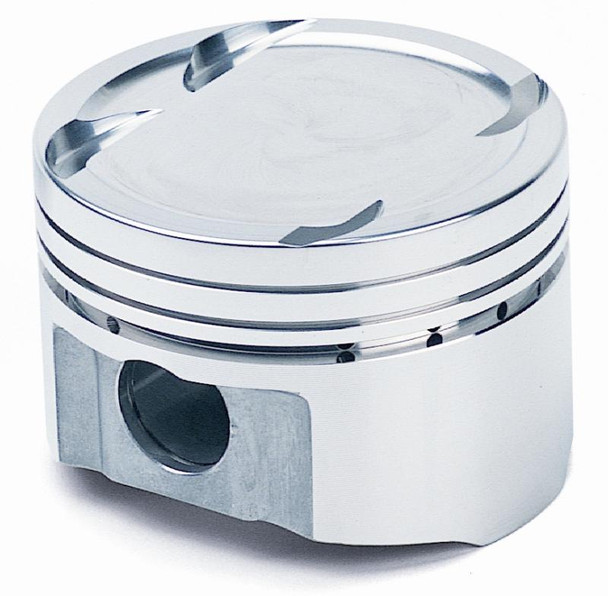

JE Pistons VW 1.8L 20V 9.25 KIT Set of 4 Pistons 242880

Part Number: jep242880 Description: JE Pistons; Set of 4 Pistons; Recommended RingSet: JG1004-3189 Stroke: 86.4mm Head CC: 43 Skirt Type: Full Round Comp Ratio: 9.25:1 Dome CC: -2.7 Gram Weight: 299 Bore: 81mm Oversized: STD mm C/D: 32.66mm Rod: 144mm Add-On: 787-050-MW Bore Diameter: 81.00 Category Hierarchy: Auto>JE Pistons>Piston Kits>European Compression Height: 1.286 Cylinder Head: 1.8T APH Engine: 1.8T 20V 20 mm Pin Forging Type: Round Industry: Automotive Make: Volkswagen Oil Ring Thickness: 0.111 Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping Piston Head Type: Flat Piston Material: 2618 Piston Volume: -2.80 Product Market: European Product Type: Engine Piston Kit Prop 65 (C, R or CR): CR Prop 65 Yes/No: Yes Second Compression Ring Thickness: 0.0480 Title: JE Pistons - Volkswagen, 1.8T 20V, 81.00 mm Bore, Piston Kit Top Compression Ring Thickness: 0.0400 Piston Average Weight: 302 Piston Series: JE Pistons Engine Type: ICE Piston Quantity: 4 Title - Web: JE Pistons Volkswagen 1.8T 20V Piston Kit - 81.00 mm Bore - 1.286 in. CH, -2.80 CC Engine - Web: 1.8T 20V Engine Detail: 1.8T 20V 20 mm Pin Make - Web: Volkswagen Prop 65 - Short Label: Prop 65 Warning Label.JPG Ring Set Included: Yes Wrist Pin Length: 2.250 Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened Wrist Pin Outer Diameter: 0.787 Wrist Pin Wall Thickness: 0.180 Bore Diameter - Web: 81.00 MM
