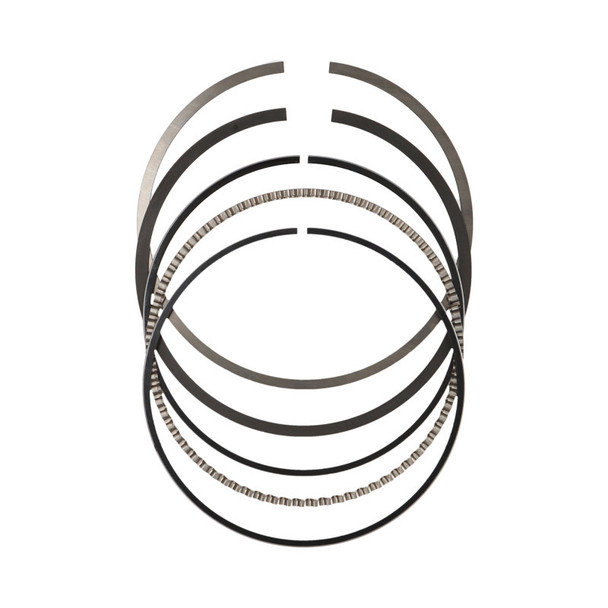

JE Pistons Ring Sets 1.0-1.2-2.8-92.25 JG1008-3632

Part Number: jepJG1008-3632 Description: JE Pistons Ring Sets 1.0-1.2-2.8-92.25 Category Hierarchy: Auto>Accessories>Pro Seal Piston Rings File Fit: Yes Industry: Automotive Oil Ring Thickness: 0.110 Out of Stock Message: Call for Availability Product Type: Engine Piston Ring Set Prop 65 (C, R or CR): CR Prop 65 Yes/No: Yes Second Compression Ring Thickness: 0.0472 Second Ring Facing Material: Phosphate Second Ring Material: Ductile Iron Third Ring Facing Material: Carbon Steel Third Ring Material: Carbon Steel Title: Piston Ring Set - 3.642 in. Bore - 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil - 8 Cyl. Top Compression Ring Thickness: 0.0394 Top Ring Facing Material: Nitride Top Ring Material: Carbon Steel Bore Diameter - Web: 3.642 IN / 92.51 MM Bore Diameter: 92.51 Engine Type: ICE Oil Ring Axial Height: 2.80 Oil Ring Radial Width: 0.128 Prop 65 - Short Label: Prop 65 Warning Label.JPG Ring Set Thickness: 0.0394 in. Top x 0.0472 in. 2nd x 0.110 in. Oil Ring Type: 3 Ring Second Ring Axial Height: 1.20 Second Ring Radial Width: 0.154 Second Ring Shape: Napier, Back Cut, Neutral Third Ring Shape: Flex Vent Title - Web: Piston Ring Set - 3.642 in. Bore - 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil - 8 Cyl. Top Ring Axial Height: 1.00 Top Ring Radial Width: 0.142 Top Ring Shape: Barrel Face, Back Cut, Neutral
