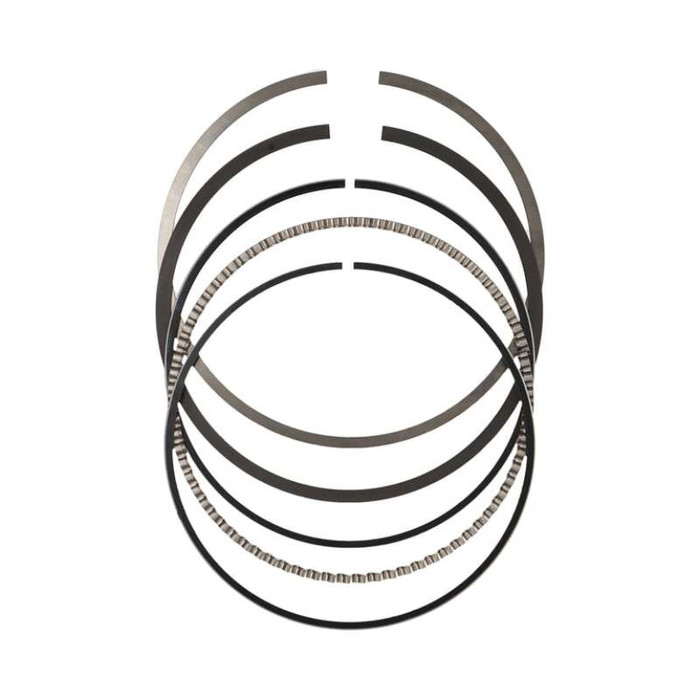

JE Pistons Ring Sets 1.0-1.2-2.8-81.00 JG1004-3189

Part Number: jepJG1004-3189 Description: ProSeal Ring Set Bore: 81.00 mm(3.189 in) Top Ring (Heigh/Width/Type): 1.0mm / 0.126 / CNS 2nd Ring (Heigh/Width/Type): 1.2mm / 0.138 / DPE Oil Ring (Heigh/Width/Type): 2.8mm / 0.128 / CNF Category Hierarchy: Auto>Accessories>Pro Seal Piston Rings File Fit: Yes Industry: Automotive Oil Ring Thickness: 0.110 Out of Stock Message: Call for Availability Product Type: Engine Piston Ring Set Prop 65 (C, R or CR): CR Prop 65 Yes/No: Yes Second Compression Ring Thickness: 0.0472 Second Ring Facing Material: Phosphate Second Ring Material: Ductile Iron Third Ring Facing Material: Carbon Steel Third Ring Material: Carbon Steel Title: Piston Ring Set - 3.189 in. Bore - 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil - 4 Cyl. Top Compression Ring Thickness: 0.0394 Top Ring Facing Material: Nitride Top Ring Material: Carbon Steel Bore Diameter - Web: 3.189 IN / 81.00 MM Bore Diameter: 81.00 Engine Type: ICE Oil Ring Axial Height: 2.80 Oil Ring Radial Width: 0.128 Prop 65 - Short Label: Prop 65 Warning Label.JPG Ring Set Thickness: 0.0394 in. Top x 0.0472 in. 2nd x 0.110 in. Oil Ring Type: 3 Ring Second Ring Axial Height: 1.20 Second Ring Radial Width: 0.138 Second Ring Shape: Napier, Back Cut, Neutral Third Ring Shape: Flex Vent Title - Web: Piston Ring Set - 3.189 in. Bore - 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil - 4 Cyl. Top Ring Axial Height: 0.80 Top Ring Radial Width: 0.126 Top Ring Shape: Barrel Face, Back Cut, Neutral
