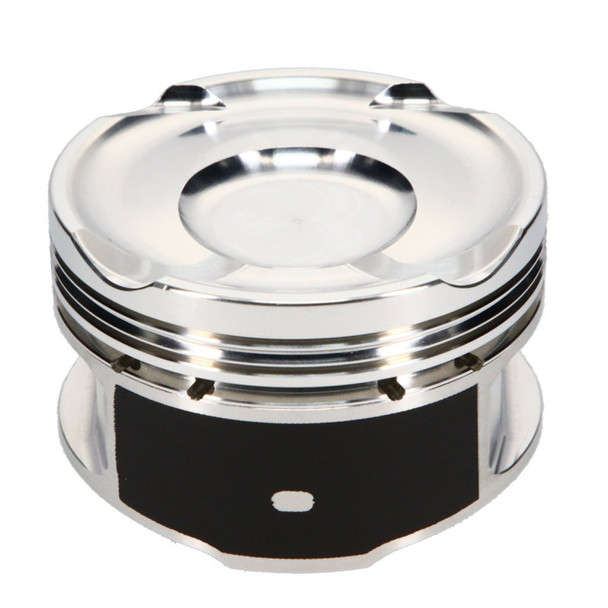

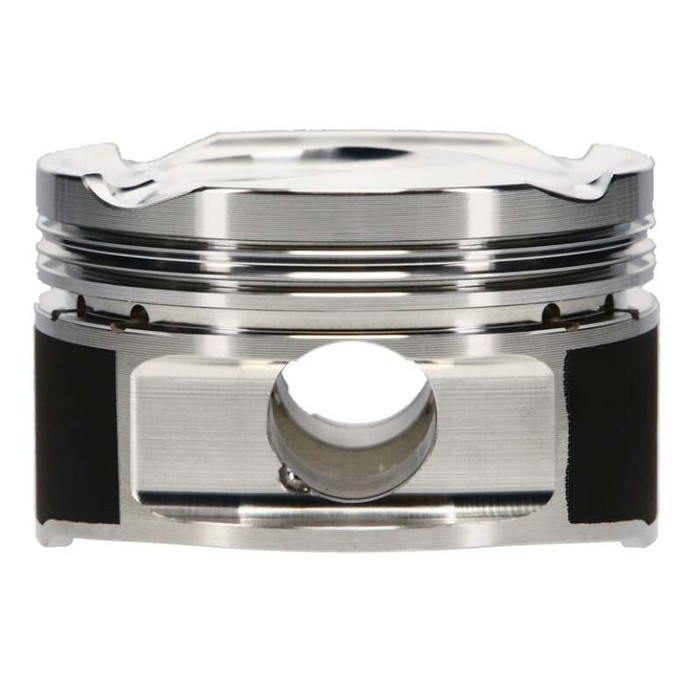

JE Pistons 2013+ Hyundai Gamma GDI 1.6L Turbo 77mm Bore -8.2cc Dish Piston Kit (Set of 4 Pistons) 361285

Part Number: jep361285 Description: JE Pistons 2013+ Hyundai Gamma GDI 1.6L Turbo 77mm Bore -8.2cc Dish Piston Kit (Set of 4 Pistons) Add-On: 787-050-MW Bore Diameter: 77.00 Category Hierarchy: Auto>JE Pistons>Piston Kits>Sport Compact Compression Height: 1.099 Cylinder Head: GAMMA GDI 1.6T Engine: 1.6L Gamma Turbo GDI Forging Type: Round Industry: Automotive Make: Hyundai Oil Ring Thickness: 0.111 Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping Piston Head Type: Dish Piston Material: 2618 Piston Volume: -8.20 Product Market: Sport Compact Product Type: Engine Piston Kit Prop 65 (C, R or CR): CR Prop 65 Yes/No: Yes Second Compression Ring Thickness: 0.0480 Title: JE Pistons - Hyundai, 1.6L Gamma Turbo GDI, 77.00 mm Bore, Piston Kit Top Compression Ring Thickness: 0.0400 Piston Average Weight: 249 Piston Series: JE Pistons Piston Quantity: 4 Title - Web: JE Pistons Hyundai 1.6L Gamma Turbo GDI Piston Kit - 77.00 mm Bore - 1.099 in. CH, -8.20 CC Engine Type: ICE Engine - Web: 1.6L Gamma Turbo GDI Make - Web: Hyundai Prop 65 - Short Label: Prop 65 Warning Label.JPG Ring Set Included: Yes Wrist Pin Length: 2.250 Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened Wrist Pin Outer Diameter: 0.787 Wrist Pin Wall Thickness: 0.180 Bore Diameter - Web: 77.00 MM
