ICON 2021+ Ford F-150 4WD 0-2.75in Stage 1 Suspension System K93111

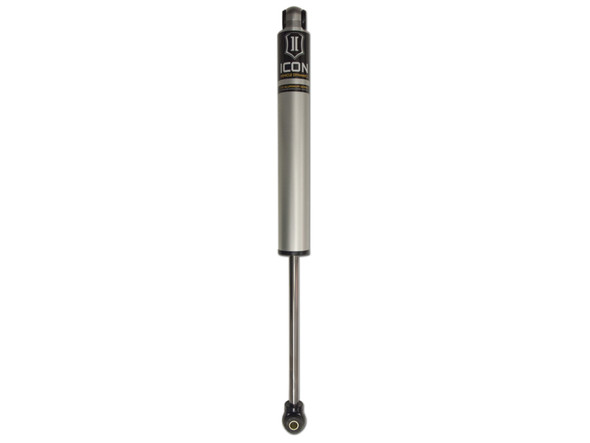

Part Number: ico96518 Description: 09-UP F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR Adjustable: NO Lower Mount Type: EYELET Upper Mount Type: EYELET Boot Included: NO Gas Charged: Yes Body Diameter: 2.0 Bushing Material: Polyurethane Coil Over Springs Included: NO Dust Shield: NO Bushing Color: Black Finish: Anodized Shock Absorber Rod End Measuring Point: CENTER OF EYELET Shock Absorber Body End Measuring Point: CENTER OF EYELET Bushing Included: yes Grade Type: Performance Title: 09-UP F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. Attributed Description: ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 16.975 IN; Fully Open Length: 28.30 IN; Shock Stroke: 11.32 IN; Travel Length: 11.32 IN Add On Part: 614700 - Shock Boot Kit Remote Reservoir: NO Title: ICON 2009-2023 Ford F150 2/4WD & 04-08 F150 4WD, Rear 2.0 VS Shock Body Diameter: 2 110: NO Tipo de Grado: Reparación de Banda Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH) Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) AAP_UDA_12: EA AAP_UDA_22: 1 AAP_UDA_4: 55 Active or Passive Suspension: Passive Adjustable Compression: No Adjustable Rebound: No Adjustable Ride Height: No Body Color: Gray Body Material: Aluminum Coil Spring Insulator(s) Included: No Color: Silver Cylinder Color: Gray Cylinder Outside Diameter: 2 Dust Shield Included: No External Reservoir: No Hydraulic Lockout: No Includes Bump Stop: No Internal Construction Type: Single Tube Internal Rebound Bumper: Yes Internal Rebound Spring: No Maximum Ride Height Raising Distance: 1 Mounting Hardware Included: No Rod Diameter: .625 Self-Leveling: No Shaft Material: Chrome Shock Absorber Bore Size: 1.75 Valving Type: Linear Adjustable Damping: No Bore Diameter: 1.75 California Prop 65 Warning: Yes Configuration: Performance Cylinder Finish: Anodized Cylinder Material: Aluminum Damping Type: Oil Dust Boot Included: No Material: Aluminum Quantity: 1 Shaft Diameter: 0.625 Suspension Type: Spring
