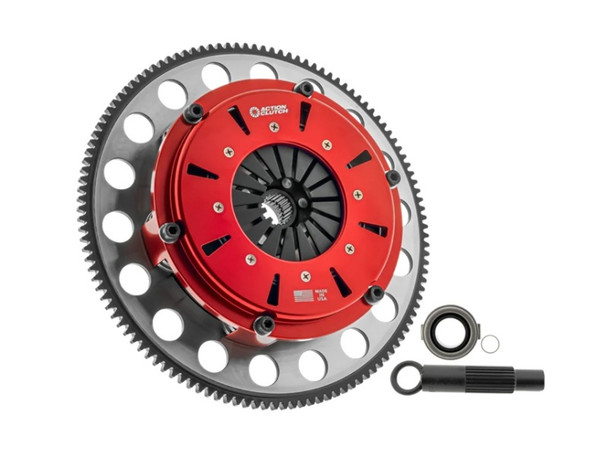

Action Clutch 94-01 Acura Integra 1.8L (B18) 7.25in Triple Disc Race Clutch Kit w/Chromoly FW ACR-2204-3D
- SKU:
- aonACR-2204-3D
- MPN:
- ACR-2204-3D
- Condition:
- New
Frequently bought together:
Description
Part Number: aonACR-2204-3D
Description: Action Clutch 94-01 Acura Integra 1.8L (B18) 7.25in Triple Disc Race Clutch Kit w/Chromoly FW
Prop 65 Yes/No: Yes
Clutch Kit Type: 7.25in Triple Disc Race Kit
Package Contents: Three (3) 7.25in American Sintered Metallic Race Discs
Release Style: Conventional Release Bearing
Installation Care: ARP flywheel bolts are not compatible with this kit, please use OEM B series or D series flywheel bolts
Disclaimer: Using a clutch kit with an unsprung clutch disc on a stock or lightly modified power engine that is daily/street driven vehicle can break the rivets on the clutch disc hub. Unsprung clutch kits are not designed for daily/street use or any constant on/off engagement environment. This can be compared to running a marathon in sandals vs a proper running shoe. If you were to run the marathon ins sandals, you have no cushion or comfort and can cause injuries or wear you down faster than using proper
Break-in Care: 100 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Clutch Disk Model: ACR-3D-725 1 1/32X24T
Pressure Plate Model: TD-HAT-725-3D
Release Bearing Model: RB-0313-TD02
Flywheel Model: AC100FW-TD
Alignment Tool Model: AT88
Clutch Disk Diameter: 725
Clutch Disk Spline Diameter: 1 1/32
Clutch Disk Spline Count: 24
