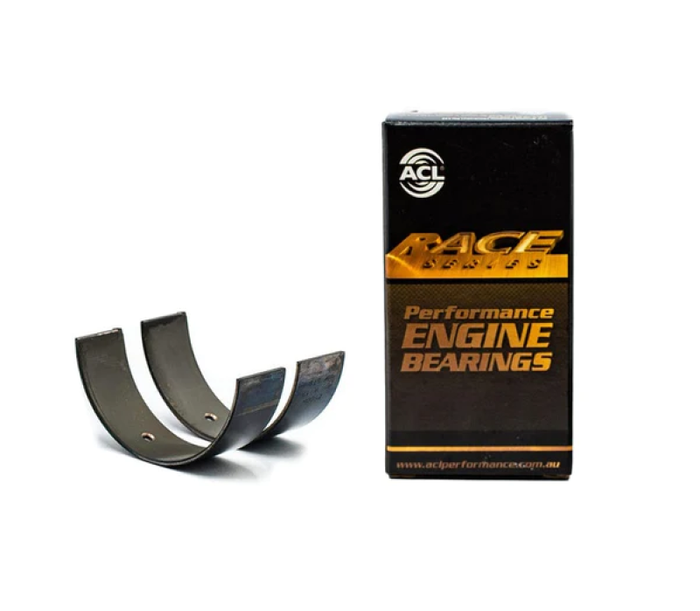

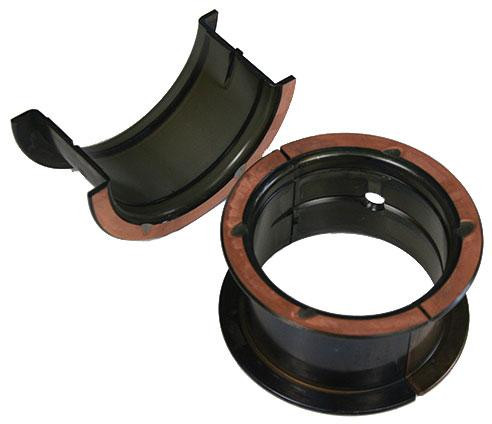

ACL Subaru EJ20/EJ22/EJ25 (For Thrust in #5 Position) 0.50mm Oversized High Performance Main Bearing 5M8309H-.50

Part Number: acl5M8309H-.50 Description: Subaru EJ25T 2457cc Flat4 DOHC 4v Turbo Size: .50 Max Std Shaft Size: 2.3622" (60.000mm) Max Overall Length: 0.748" (19.00mm) w/ 8297H/HX 0.595" (15.12mm) w/ 8298H/HX 0.904" (22.95mm) w/ 8309H/HX Flange Max Std Tunnel Size: 2.5205" (64.020mm) Min Std Shaft Size: 2.3616" (59.984mm) Oil Clearance: Standard Max Wall at Crown: 0.0789" (2.005mm) Min Std Tunnel Size: 2.5197" (64.000mm) Grade Type: Performance Outside Diameter: 2.5197 Shaft Diameter: 2.3616 Width: 0.748 Max Wall: 0.0789
